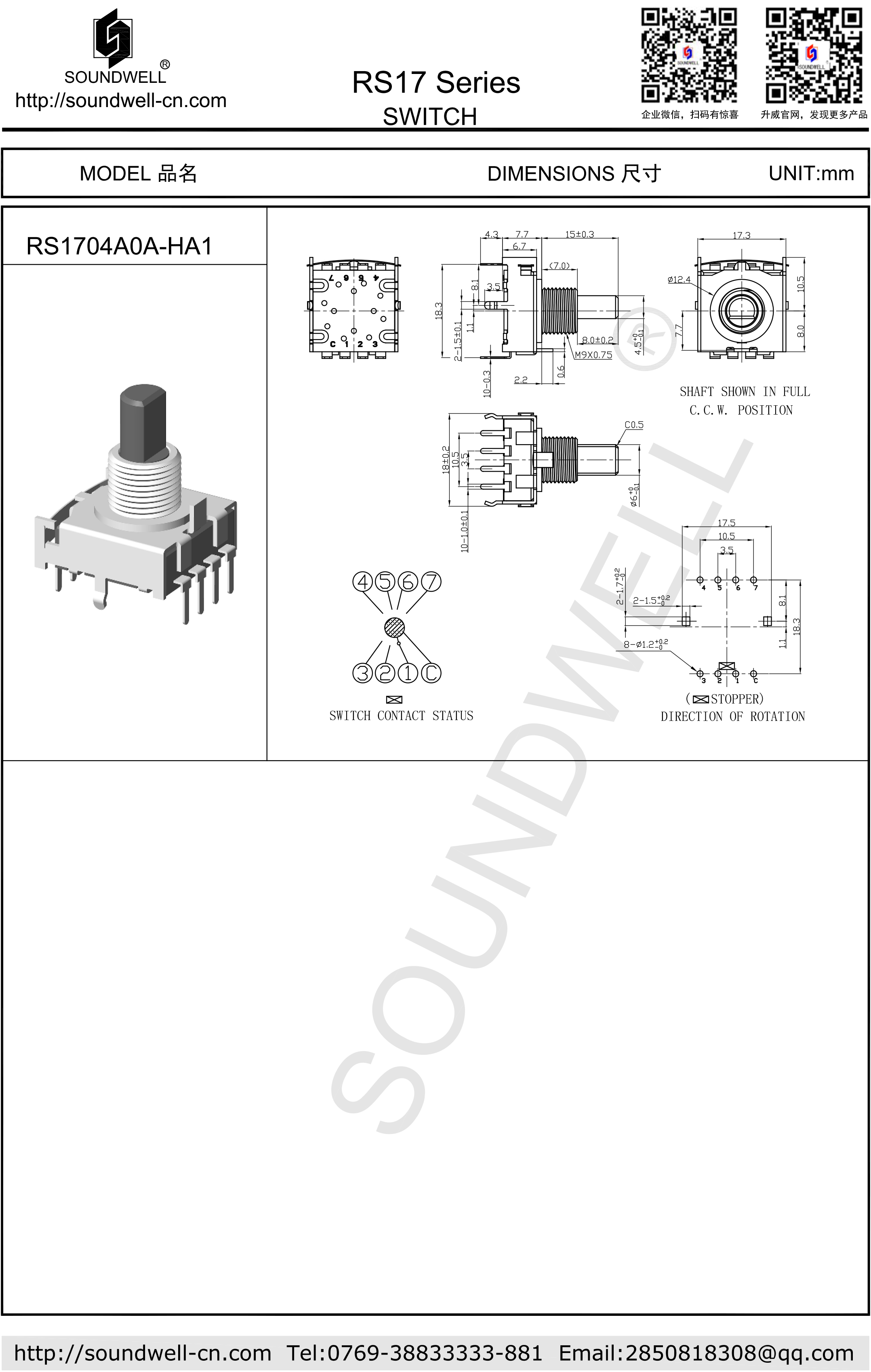

| Multi-way switch model: | RS1704 |
| name: | Plastic shaft rotary switch |
| Main specifications: |
Dimensions: 17mm; |
| Features: |
2~7 positions available with clear sense of clicks; Available in various shaft options; |
| Application areas: |
Home appliances such as micro- wave ovens, washing machines, audio devices, health care systems or other electronic products; The main functions are function switching, speed adjustment, temperature adjustment and so on. |
一、MECHANICAL CHARACTERISTIC
1、Rotational torque ：100~400gf.cm
2、Step angle ：45°±3°
二、ELECTRICAL CHARACTERISTIC
1、Contact resistance ：100mΩ Max
2、Rated power ：DC16V 0.3A
3、Number of detent ：2～7
4、Insulation resistance ：100M? 1 Minute at DC 100V
5、Dielectric voltage ：1 Minute at AC 100V
三、ENDURANCE CHARACTERISTIC
1、Rotational life ：10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
