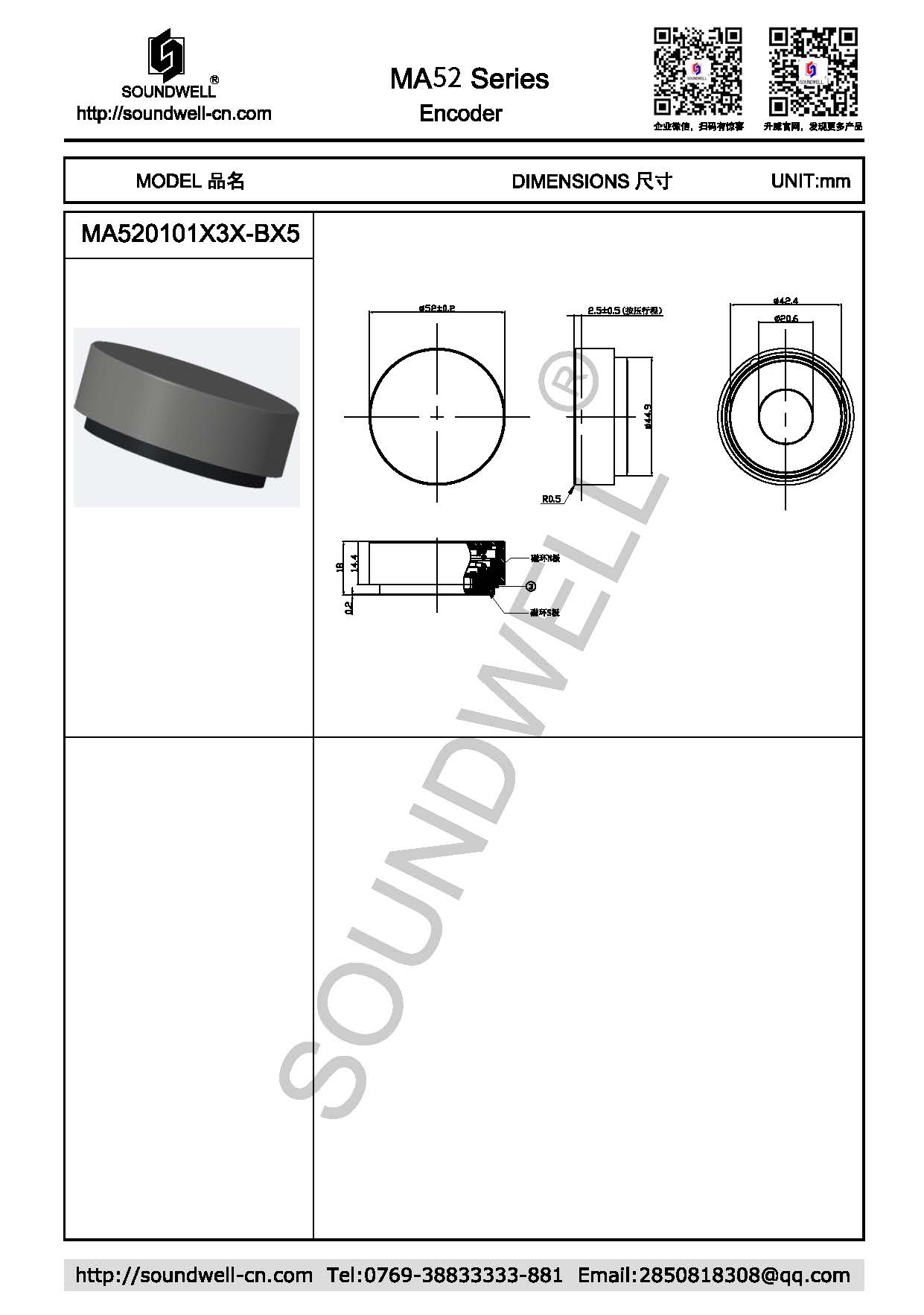

| Encoder model: | MA52 series |
| name: |
MA52 Rotary Magnetic Encoder |
| Main specifications: |
Dimension: 52mm*18mm； |
| Features: |
Separate press knob controller; |
| Application areas: |
Integrated stove and other household appliances; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100-300gf.cm
2. Step angle: 15°±2°
3. Switch operating force: 350~650gf
TWO、ELECTRICAL CHARACTERISTIC
1. Rated power: DC 5V 15mA
2. Pulses: 100
3. Number of detent: 24
4. Insulation resistance: 100M? 1 Minute at DC 250V
5. Dielectric voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
2. Switch operating life: 100,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
