| multi-way switch model： | RS17 series |
| Name： | RS17 Insulated Shaft Rotary Route Switch |
| Main Specifications: | Dimensions: 17mm Rated power: DC16V 0.3A Contact resistance: 100mΩ Max Number of positions: 2～8 Operating temperature: -10℃～70℃ Rotational life: 10,000 cycles Min |
| Product Features： |
2~8 positions available with clear sense of clicks; Available in various shaft options; |
| Applications： |
Home appliances such as micro- wave ovens, washing machines, audio devices, health care systems or other electronic products; The main functions are function switching, speed adjustment, temperature adjustment and so on. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100~400gf.cm
2. Step angle: 30°±3°
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 100mΩ Max
2. Rated power: DC16V 0.3A
3. Number of positions: 2～8
4. Insulation resistance: 100M? 1 Minute at DC 100V
5. Dielectric voltage: 1 Minute at AC 100V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min

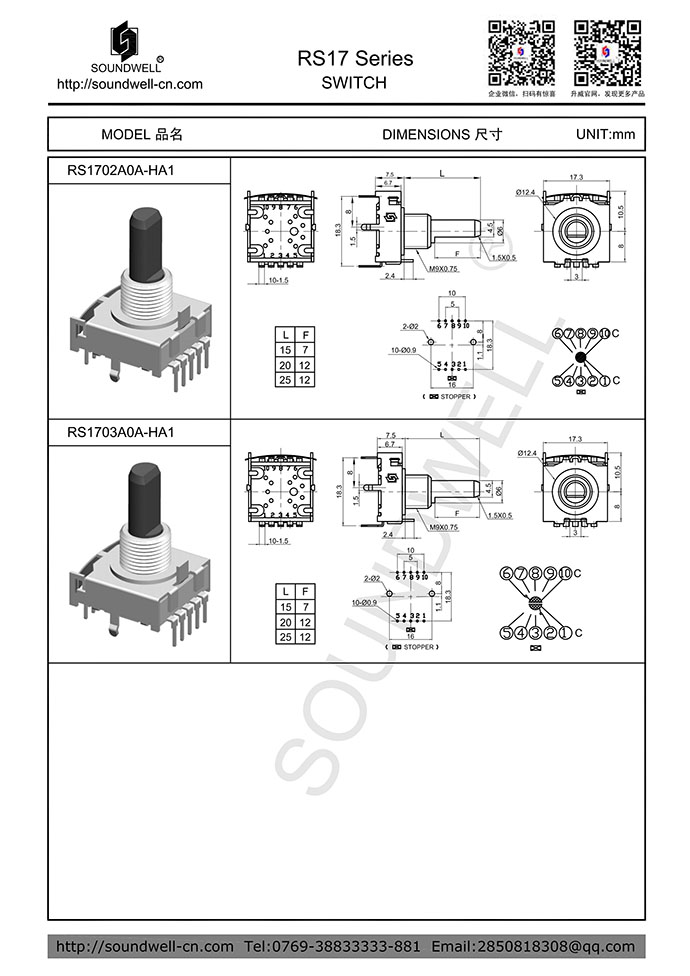

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
